Are you setting up a solar power system and wondering about the role of a solar charge controller? A solar charge controller is crucial in protecting your system’s batteries and ensuring you get the most efficient energy conversion. But with two main types—MPPT and PWM—each offering unique advantages, which one should you choose? Understanding these controllers, how they function, and which best suits your needs can significantly impact your system’s performance and longevity.
In this guide, we’ll break down everything you need to know about solar charge controllers, from their core features to practical installation tips, and help you decide whether MPPT or PWM is right for your solar setup.
Read More: What are the Top Benefits of Solar Lights?
What is a Solar Charge Controller
A solar charge controller is an electronic device that manages the power flowing from a solar panel to a battery bank, playing an essential role in both off-grid and hybrid solar power systems. By regulating the voltage and current coming from the solar panels, a solar charge controller protects batteries from overcharging and ensures efficient energy flow.
Solar charge controllers have various functions, such as preventing reverse current at night when panels are inactive, which could drain the battery. These controllers can also come with extra features, like lighting control or load management, enhancing the system’s flexibility. Whether you’re managing a small-scale setup or a larger solar installation, a solar charge controller is vital to keep batteries healthy and prevent power loss.
A key benefit of using a solar charge controller in solar power systems is improved battery life. Without one, batteries can become overcharged, leading to a shorter lifespan and costly replacements. Solar charge controllers also make solar power systems safer by protecting against short circuits, high voltage, and overheating, which could otherwise damage the equipment.
In a solar power system, solar charge controllers typically use two main technologies: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT). Choosing the right type based on your power needs, budget, and system configuration can make a significant difference in performance.
How a Solar Charge Controller Works
At its core, a solar charge controller regulates the amount of power flowing from the solar array into the batteries, safeguarding them against overcharging. This regulation is achieved through multistage charging, which varies the power sent to the battery depending on its charge level, thereby promoting battery longevity.
The controller performs several essential functions, like reverse current protection, which prevents the battery from discharging through the solar panels during the night. Low voltage disconnect is another valuable feature, shutting off connected loads when the battery level is too low and reconnecting them when charged. These protections prevent damage to both the battery and the entire solar power system.
Installation involves a specific sequence to connect the battery, solar array, and load to the charge controller. Generally, it is advised to connect the battery first, followed by the solar array and finally, the load. Following this order ensures the controller remains powered while the system is active, preventing potential surges or damage.
For additional safety, grounding and disconnect switches are recommended. A grounded system provides an extra layer of protection against electrical faults, while disconnect switches make installation, maintenance, and any future adjustments safer and more manageable.
Types of Solar Charge Controllers: PWM vs. MPPT
PWM Solar Charge Controllers
Pulse Width Modulation (PWM) is one of the primary types of solar charge controllers, providing a straightforward way to connect a solar array directly to the battery bank. PWM controllers operate by matching the voltage of the solar panel to that of the battery, which is effective but may lead to some energy loss if voltages aren’t perfectly aligned.
With PWM, the voltage output from the solar array is “pulled down” to the battery level, making it crucial to match the panel and battery voltages closely. For instance, a 12V solar panel should connect to a 12V battery, while a 24V panel should pair with a 24V battery. This matching is necessary to avoid energy loss and ensure optimal charging.
PWM controllers are generally more affordable and suitable for smaller systems with limited power requirements. However, this simplicity may result in lost energy when dealing with mismatched voltages, which can lead to inefficiencies in larger solar setups.
Despite its limitations, a PWM solar charge controller is an ideal choice for basic solar systems due to its cost-effectiveness and reliability. Its straightforward design makes it easy to install and maintain, and it’s often preferred by users looking for a budget-friendly option.
MPPT Solar Charge Controllers
Maximum Power Point Tracking (MPPT) controllers use more advanced technology to optimize power conversion, making them more efficient than PWM controllers. An MPPT controller measures the maximum power voltage (Vmp) of the solar panel and converts it to the battery voltage while increasing the current, thus maximizing energy use.
MPPT controllers are versatile, allowing the use of higher voltage panels with lower voltage batteries, such as charging a 12V battery with a 20V panel. This flexibility opens up options for larger systems and higher voltage solar arrays, particularly beneficial in colder climates where PV panels naturally produce higher voltages.
The added efficiency of MPPT controllers often comes with a higher price tag, but they offer improved performance, especially in larger or more complex setups. By converting extra voltage into usable energy, they provide greater power output than PWM, making them an excellent choice for users looking to maximize their solar power investment.
Although more expensive, MPPT controllers are highly recommended for users who want to use larger arrays or benefit from every watt of power available, ultimately increasing energy production and battery life in off-grid systems.

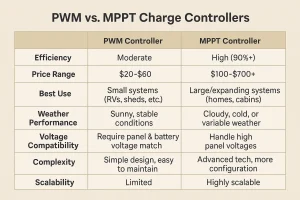

Key Differences Between PWM and MPPT Solar Charge Controllers
Efficiency and Performance
Efficiency is one of the most significant differences between PWM and MPPT solar charge controllers. MPPT controllers offer higher efficiency levels because they are designed to capture and convert excess voltage from the solar array into additional current. This results in a higher output to the battery, making MPPT controllers especially beneficial in high-demand solar setups. By using MPPT technology, the controller identifies the panel’s maximum power point, enabling it to draw the most power from the solar array and optimize energy conversion.
On the other hand, PWM controllers operate with simpler technology that directly connects the solar array to the battery, adjusting the voltage but not maximizing power output. This direct connection can result in energy loss when the panel voltage is higher than the battery voltage, as PWM does not have a voltage-matching mechanism. Therefore, PWM is typically less efficient, especially in systems with larger arrays or varying sunlight conditions.
MPPT controllers are ideal for users who want maximum efficiency and power output in their systems. Their ability to adjust and convert voltage means that they can take full advantage of high-voltage panels, even when the battery voltage is lower. PWM controllers, however, may be more practical for smaller systems where budget and simplicity outweigh the need for maximum efficiency. While PWM controllers may lose some energy, they offer stable and straightforward performance in compatible setups.
Cost Considerations
PWM controllers are generally more budget-friendly than MPPT controllers, making them accessible for smaller or simpler solar systems. Their lower price point is due to the simpler technology they use, which lacks the voltage conversion and power optimization found in MPPT systems. For those who want a cost-effective option and don’t require high-efficiency output, a PWM controller may be sufficient, particularly for smaller setups with closely matched panel and battery voltages.
In contrast, MPPT controllers come with a higher price tag but offer enhanced efficiency and long-term performance gains. By maximizing energy capture from solar panels, MPPT controllers can lead to reduced energy waste and potentially lower battery replacement costs over time. This cost efficiency can make the initial investment worthwhile for users looking for long-term savings on battery and system maintenance.
While MPPT controllers require a more significant upfront cost, they can be ideal for those planning large, high-demand systems or those interested in scaling their setup in the future. Conversely, PWM controllers may be the best fit for small-scale, budget-conscious users who want a straightforward solution without the extra features and cost of MPPT.
Compatibility and Voltage Matching
A critical factor in choosing between PWM and MPPT controllers is their compatibility with different voltage levels. PWM controllers require a close voltage match between the solar panel and battery, meaning that if you have a 12V battery, your panel should also operate at 12V. If mismatched, PWM controllers may waste excess energy, as they are unable to convert additional voltage into usable power.
On the other hand, MPPT controllers offer greater flexibility with voltage matching, allowing higher voltage solar panels to charge lower voltage batteries. For example, a 20V solar panel can effectively charge a 12V battery when using an MPPT controller, as the controller will step down the voltage and increase current to match the battery requirements. This flexibility opens up a wider range of panel options, allowing users to integrate panels of varying voltage levels without sacrificing efficiency.
This adaptability makes MPPT controllers ideal for systems with high-voltage arrays or for users who may want to expand or reconfigure their system in the future. PWM, while more restrictive in this aspect, remains a suitable choice for small systems with matched voltages, where simplicity and affordability are more important than voltage flexibility.
Suitability for Various Environments
Environmental conditions can also impact the choice between PWM and MPPT controllers. MPPT controllers are well-suited for colder environments, where PV panel voltage naturally increases, enabling MPPT to capture more energy from the available sunlight. In cold climates, solar panels tend to operate at a higher voltage due to increased sunlight exposure and lower temperatures, making MPPT controllers a more efficient choice to maximize energy capture.
PWM controllers, on the other hand, perform reliably in stable environments with consistent sunlight and moderate temperatures. In these conditions, where panel voltage remains relatively stable, PWM controllers can provide effective battery charging without the need for advanced voltage tracking or conversion. For users in warmer, sunny climates with minimal fluctuations in sunlight or temperature, PWM controllers offer a practical and affordable option.
Choosing the right controller based on environmental conditions ensures that the system operates optimally, reducing energy loss and enhancing battery longevity. In high-altitude or seasonal climates, MPPT controllers often offer superior performance, while PWM controllers can be sufficient for setups in locations with steady solar conditions year-round.
Choosing the Right Solar Charge Controller for Your Needs
Consider System Size and Budget
For small systems on a budget, a PWM controller is a suitable and economical option. However, for larger systems or setups requiring maximum efficiency, investing in an MPPT controller can result in better energy returns over time.
Analyze Power Requirements
Consider the total power consumption of your system and the type of batteries you’re using. MPPT is beneficial if you’re dealing with a higher power demand, as it optimizes power usage by capturing the maximum available energy from the panels.
Evaluate Environmental Conditions
MPPT is ideal for cold climates where panel voltage tends to increase, providing enhanced energy output. PWM is a solid choice for warmer, stable climates where voltage fluctuations are less common.
Long-term Benefits and Maintenance
While MPPT controllers may require a higher initial investment, they offer improved long-term efficiency, reducing the frequency of battery replacements. This can lead to cost savings and more stable power production over time.
Installation and Maintenance Tips for Solar Charge Controllers
Recommended Installation Practices
Installing a solar charge controller involves a precise connection sequence: battery first, followed by solar panels, and then the load. This ensures the controller remains powered and safeguards against potential voltage spikes.
Grounding and Safety Precautions
Grounding the system is essential for preventing electrical faults and ensuring user safety. Ground connections should be established for each component, including the battery, controller, and solar array.
Routine Maintenance
Perform regular checks on connections, cables, and fuses to ensure all components function correctly. Cleaning panels and inspecting wiring for damage can prevent energy loss and enhance system longevity.
Troubleshooting Common Issues
If the controller shows irregular behavior, check for potential installation errors, voltage mismatches, or overheating. LED indicators can often provide warning signs, helping you identify and resolve issues quickly.
Conclusion
Choosing the right solar charge controller—MPPT or PWM—depends on your system’s needs, budget, and environment. PWM offers simplicity and cost-effectiveness, ideal for small, stable setups, while MPPT delivers advanced efficiency, perfect for maximizing power in larger systems. By assessing your unique requirements, you can select the best controller to ensure efficient, reliable energy for your solar-powered lifestyle.
Frequently Asked Questions (FAQs) about Solar Charge Controllers
Do I need a solar charge controller for my system?
Yes, a solar charge controller is essential to regulate energy flow and protect batteries from overcharging.
Which controller is better for larger systems?
MPPT controllers are often recommended for larger setups, as they provide greater efficiency and flexibility.
Can I use a PWM controller in cold climates?
PWM controllers may lose efficiency in cold climates due to voltage mismatches, making MPPT a better choice.
How do I know if my controller is working correctly?
Check the LED indicators, connection points, and ensure the correct voltage output for optimal performance.
